The Orient has been designed for the sheer pleasure of riding the open road, certain in the knowledge you have a machine that can cope with whatever demands you make of it. Featuring J. Guillem-trademark stiff, light and durable tubing in more relaxed angles, it’s the basis for a be-anything-you-want-it-to-be-bike.

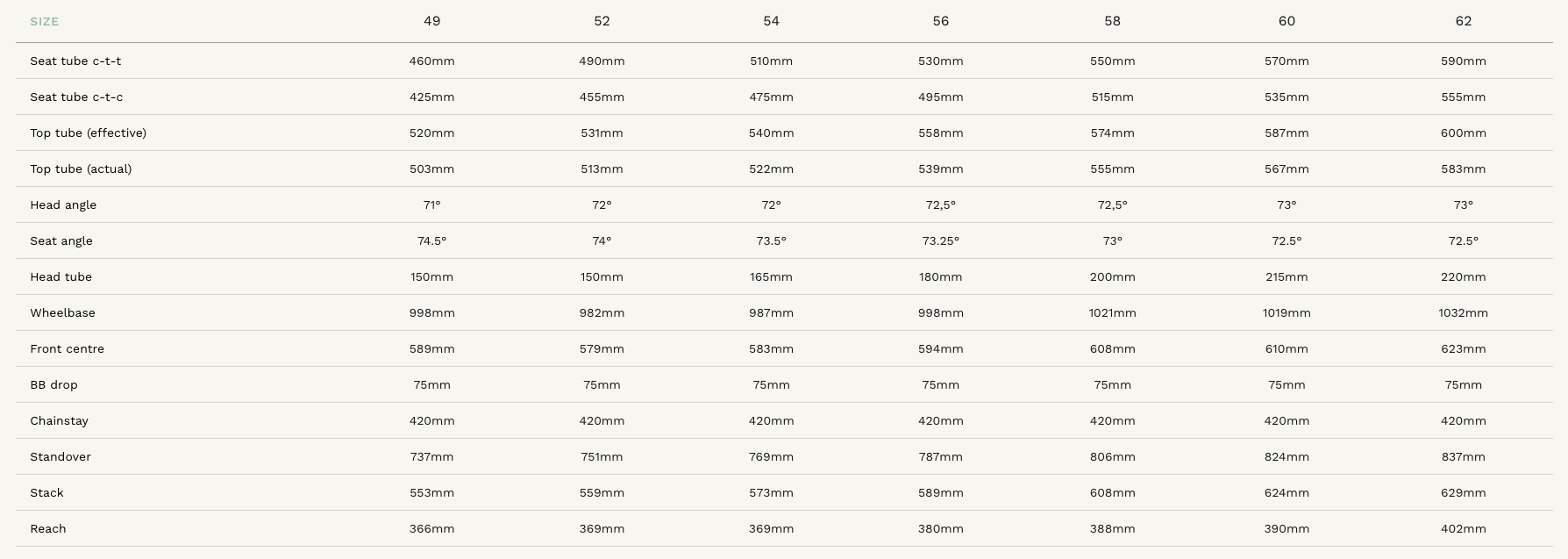

Competitive endurance geometry
Sram RIVAL XPLR AXS, 1 x 13spd 42T/10-46T Groupset
DT Swiss G1800 Spline 25 Disc Wheel Set
Seamless aerospace grade 3Al/2.5V Titanium
Beautifully hand brushed finish
1.1-2” to 1.1-2” 3D printed head tube system
Flat mount disc brake mount

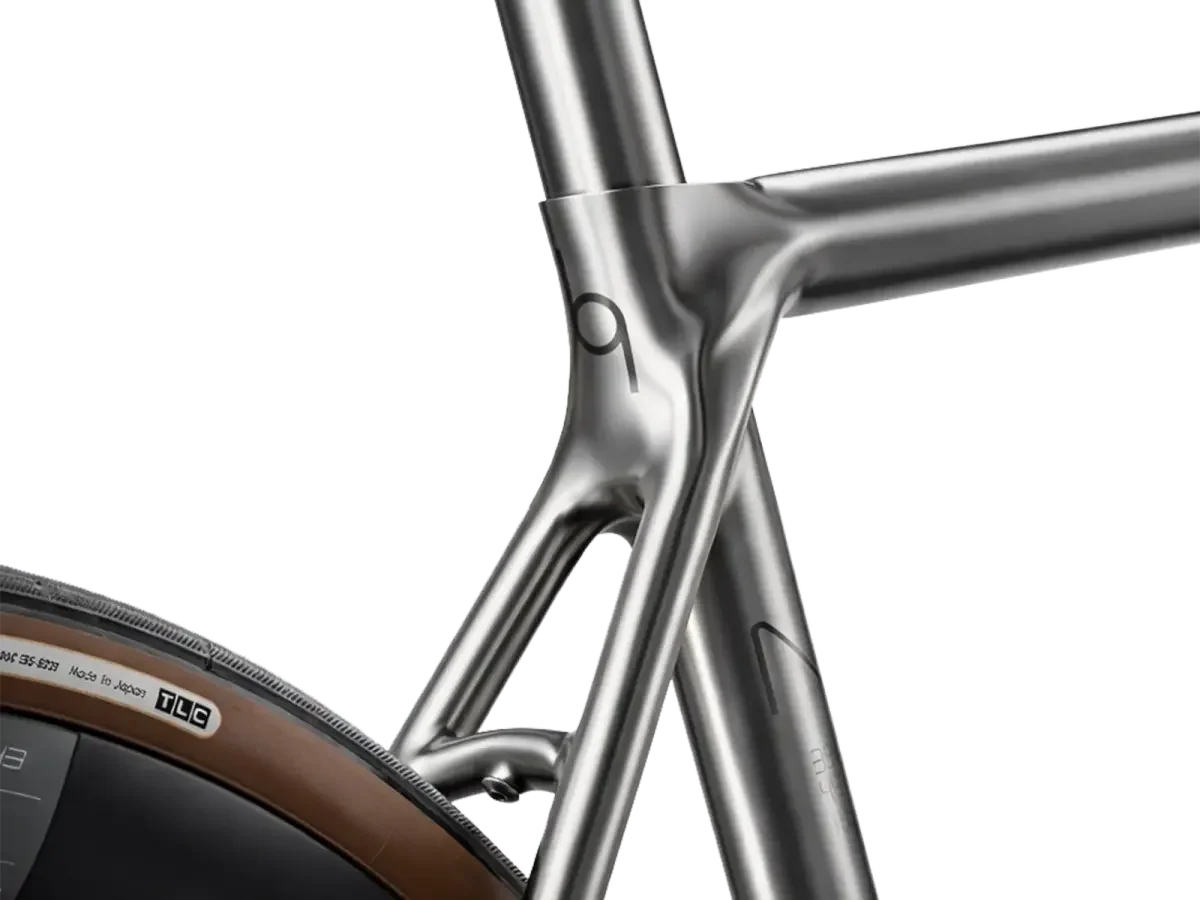

1-piece 3D printed T47 bracket & chain-stay yoke
J.Guillem 3D printed disc drop outs
Internal cable routing
Mudguard and Rack mounts
142x12mm UDH rear and 100x12mm front axle
2 x Water Bottle Cage Mounts
700c x 35-38mm tire compatibility
30,9mm Seat Post/34,9mm Front Derailleur Clamp Diameter
Avaialbe in Frame only (AU$ 7000.00) and Frame Set (AU$ 7850.00)
